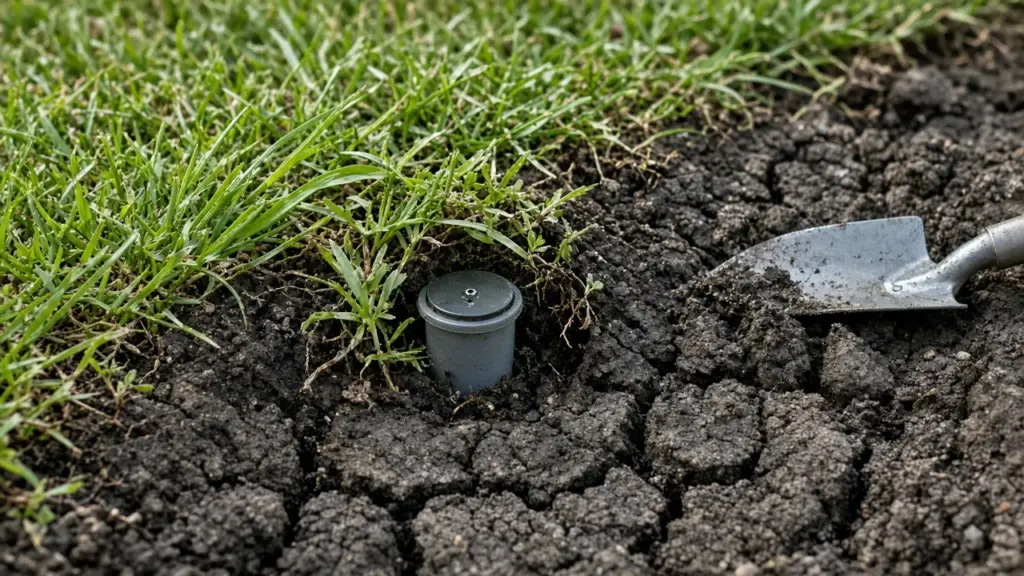

Sunken Sprinkler Heads in Black Clay: Raising Them the Right Way

A sprinkler head that sits too low cannot do its job. Instead of spraying across the lawn, it sprays into the surrounding grass, leaving a dry ring or crescent beyond. In Dallas, sunken heads are one of the most common coverage problems, and the region’s black clay is a big reason why.

Raising a head is not complicated, but doing it the right way keeps it from sinking again or breaking the pipe below. This guide explains why heads sink, how to raise them properly, and when a sunken head points to a bigger issue.

Why Heads Sink in Dallas Clay

Shrink and swell

Dallas clay shrinks when it dries and swells when it gets wet. Over many cycles, this movement shifts heads up, down, and sideways. A head that was set perfectly at installation can end up an inch or two low after a few seasons.

Soft backfill

When a head is installed or repaired, the soil around it is disturbed. If the backfill was not firmed, it settles over time, and the head settles with it.

Thatch and turf buildup

Turf grasses like St. Augustine and Bermuda build up thatch and soil level over time. The head may not have moved at all; the lawn surface rose around it.

Traffic and mowers

Heads in high-traffic areas get stepped on and driven over, pushing them down.

Broken fittings

A head that sinks suddenly may be sitting on a broken riser or fitting. Water leaking from a cracked fitting can soften the soil so the head drops.

Our guide to why black clay makes sprinkler repair harder covers how clay affects every part of a system.

How to Tell If a Head Is Too Low

• The top of the head sits below the soil or turf surface
• A dry ring or crescent forms just beyond the head
• Spray hits the surrounding grass blades
• The head does not pop up fully because turf or soil holds it down

A properly set head sits flush with the finished grade, with the top level with the soil surface, and stands straight up.

Tools and Parts

• A narrow spade or trowel
• Replacement riser or swing joint parts, depending on how the head is connected
• A new head if the old one is worn
• Teflon tape if the fittings call for it

Step-by-Step: Raising a Sunken Head

1. Turn off the zone at the controller so it does not run while you work.
2. Dig carefully around the head. Cut a circle of turf a few inches out from the head and set it aside. Dig down to expose the riser and the fitting below. Clay is dense, so work slowly to avoid cracking the pipe.
3. Look at how the head is connected. Many heads sit on a riser that threads into a fitting on the lateral pipe. Better installations use a swing joint, a flexible or jointed connection that allows height adjustment and absorbs impact.
4. Choose the right fix.

– If the head sits on a short fixed riser, replace it with a longer riser or, better, a swing joint.

– If there is a swing joint, adjust it so the head sits at grade.

– If the fitting is cracked, repair the pipe first.

1. Set the head at grade. The top should be flush with the soil surface.
2. Flush the line. Before installing the nozzle, briefly run the zone to flush debris.
3. Backfill firmly. Add soil in layers and firm each layer around the head so it stands straight.
4. Replace the turf plug and water it in.
5. Test the zone. Watch the head pop up and spray. Adjust arc and radius.

Why Swing Joints Matter

A rigid riser transfers every bump to the pipe fitting below. When a mower or car hits the head, the fitting can crack. In clay that shifts, a rigid riser can also stress the fitting over time. Swing joints flex, so the head can move without breaking the pipe. They also make future height adjustments easier. If you are raising many heads, converting to swing joints is worth considering.

Common Mistakes

• Pulling the head up without support. Lifting the head without a longer riser or swing joint leaves it unsupported, and it will tilt or sink again.
• Using a riser that is too long. A head set above grade gets hit by mowers.
• Loose backfill. Soft soil lets the head sink again.
• Skipping the flush. Debris from digging can clog the nozzle.
• Ignoring a leak. If the soil around the head is wet when the zone is off, repair the leak first.

When Many Heads Are Sunken

If most heads in a zone sit low, the lawn surface has probably risen over time, or the original installation set them too low. A zone-wide adjustment is often more efficient than raising heads one at a time. This is also a good moment to consider modern heads with taller pop-ups, which clear thick turf better. Our comparison of spray heads, rotors, and rotary nozzles can help you choose.

Tall Turf and Pop-Up Height

Heads come in different pop-up heights. Short pop-ups may not clear taller turf, especially St. Augustine mowed at a higher height. If spray is blocked even when the head sits at grade, a taller pop-up body can help.

When a Sunken Head Means a Leak

Sometimes a sunken head is a symptom of a leak. Water from a cracked fitting softens the clay, and the head drops into the soft soil. If a head sinks quickly, the soil around it stays wet, or you see bubbling when the zone runs, dig carefully and check the fitting. Our guide to a head that keeps geysering covers related issues.

Maintenance Tips

• Check head height each spring during startup
• Trim turf around heads so spray is not blocked
• Watch heads along sidewalks and driveways, which get hit most
• Keep a few spare risers and swing joint parts on hand

Our complete guide to sprinkler head repair covers other head problems and fixes.

Why This Matters for Water Use

A sunken head wastes water. The water it applies soaks the turf right around the head, while the area it should reach stays dry. The usual response, longer run times, overwaters the rest of the zone to compensate for one spot. Raising a single head can let you shorten run times for the whole zone.

Raising Heads Along Sidewalks and Driveways

Heads along hardscape edges are the ones most likely to be too low or too high. Concrete edges shift slightly over time, and soil near the edge washes out or builds up. When raising heads along these edges, set them just inside the turf so mower wheels and edgers pass without hitting them. Adjust the arc so spray stays off the concrete.
